Uploading Projects

Using QViewer to Upload Projects into the Riverscapes Data Exchange

Uploading Riverscapes Projects

With QViewer you can upload riverscapes projects into the Riverscapes Data Exchange. This features is intended for uploading a single Riverscapes project at a time. You should use the Riverscapes Command Line Interface (rscli) if you intend to upload more than a handful of projects.

Before You begin

This feature requires that you have the following:

a Riverscapes login. Visit the Riverscapes Data Exchange and create one first if you don't have one already.
A valid Riverscapes compliant project. This can be a new project that you have created, either by hand or using a tool such as Riverscapes Studio. Or it could be a project that you or someone else has downloaded from the Data Exchange and altered in some way; Perhaps you have edited some data or performed quality control.

Getting Started

Open the project you want to upload in the Riverscapes Viewer.

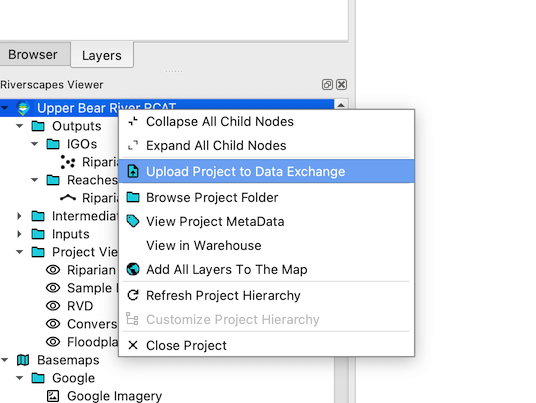

Right click on the project node in the project explorer and choose Upload Project to Data Exchange.

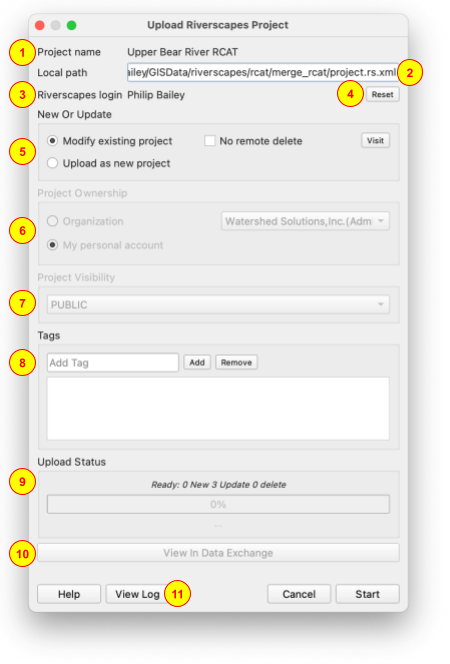

A web browser will open and you will be prompted to login to the Riverscapes Data Exchange. After you have successfully logged in, focus will return to QGIS and the project upload form (see below). If you already have an active Riverscapes login then it will be detected and you will not need to login again. Should you want to change Riverscapes logins you can click the Reset button (4) to logout and be prompted for a different login.

The project name is shown at the top of the form (1), followed by the local path (2) where the project is located on your computer. ALWAYS check that both these fields are correct and that you are attempting to upload the correct project!

New or Update Project

If your riverscapes project originated from the Data Exchange then you will have the option to modify the existing project (i.e. overwrite the version that's in the Data Exchange) (5). If you choose to modify you can choose whether you want to keep all files on the Data Exchange ("no remote delete"). This is useful if you have downloaded a partial copy of a project from the Data Exchange and want to upload just the parts that you downloaded while keeping all the other files that exist online. Unchecking the "No remote delete" box when modifying existing projects will upload your local copy and remove any files on the Data Exchange that do no appear in your local copy.

For projects that originated in the Data Exchange, clicking the Visit button will launch a web browser and take you to the project details for the relevant project.

If the project has never been stored in the Data Exchange, you will be limited to the "Upload as new project" option.

Project Ownership

If the project has never been stored in the Data Exchange, you can choose whether to assign the new project to an organization or leave it associated with your Riverscapes user account (shown above in 3). Note that the list of available organizations is limited to only those to which you have write privileges. If you don't see the desired organization, then visit the list of organizations in the Data Exchange and contact the organization administrator to request access.

Visibility

Pick the appropriate visibility for the project in the Data Exchange. Note that this option is only available when uploading new projects. Modifying an existing project will retain its existing visility.

PUBLIC projects are visible, downloadable and searchable by any user in the system (applies to both user owned AND organization owned).
PRIVATE Can be searched by all users, but only owners of the project (user owned projects) or members of the organization (org-owned projects) can see, download or modify the project and data layers.
SECRET projects are identical to PRIVATE projects with one exception: they are not searchable or visible to users who do not explicitly have access.

Upload Status

Before you click Start to begin the Upload process you should review the proposed number of files to be added, updated or deleted. Pause and genuinely contemplate if the numbers make sense!

Uploading

Clicking Start will commence project upload into the Data Exchange. There's one final prompt to ensure that you do indeed want to upload the project. You can cancel the process part way through and any files that have already been uploaded will be removed from the Data Exchange. The project is not considered part of the Data Exchange until ALL files are successfully uploaded.

Once the upload is complete, the Data Exchange does a final check to validate the project and it's files. The status will appear as "Waiting for Upload Completion" for a few seconds during this step (9).

After the project upload is complete you can click the View in Data Exchange button (10) to open a browser and navigate to the project details of the newly uploaded project in the Data Exchange.

Notes

Modifying an existing project in the Data Exchange is permanent and cannot be undone.
For projects that originated from the Data Exchange, a comprehensive file hash check is used to determine which files have changed relative to those that already exist online. Only files that have changed are uploaded.
Note that the simple act of adding a GeoPackage layer to the map in QGIS will ever so slightly change the underlying GeoPackage file on disk. This means that downloading, viewing and then re-uploading a Riverscapes project will likely detect changes in GeoPackages that have been used, even if you haven't explicitly made any changes to the data. This is a limitation of the GeoPackage format and not a bug in the uploader. Given that most Riverscapes project types have a default project view that loads one or more GeoPackage layers into the map, this is a common scenario. The uploader will detect these changes and upload the modified GeoPackages. This is not a problem, but it is something to be aware of.
